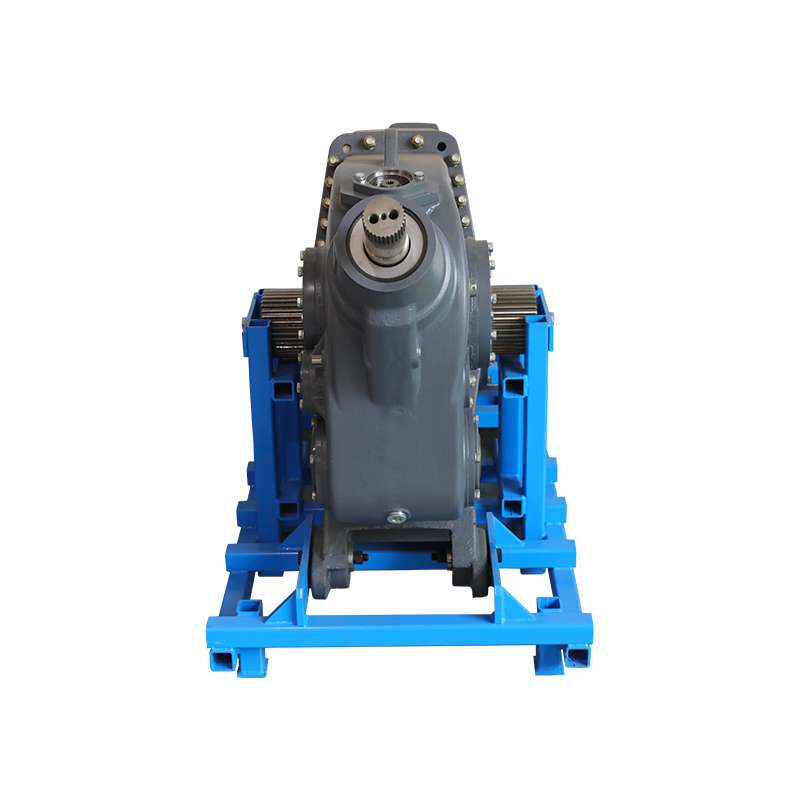

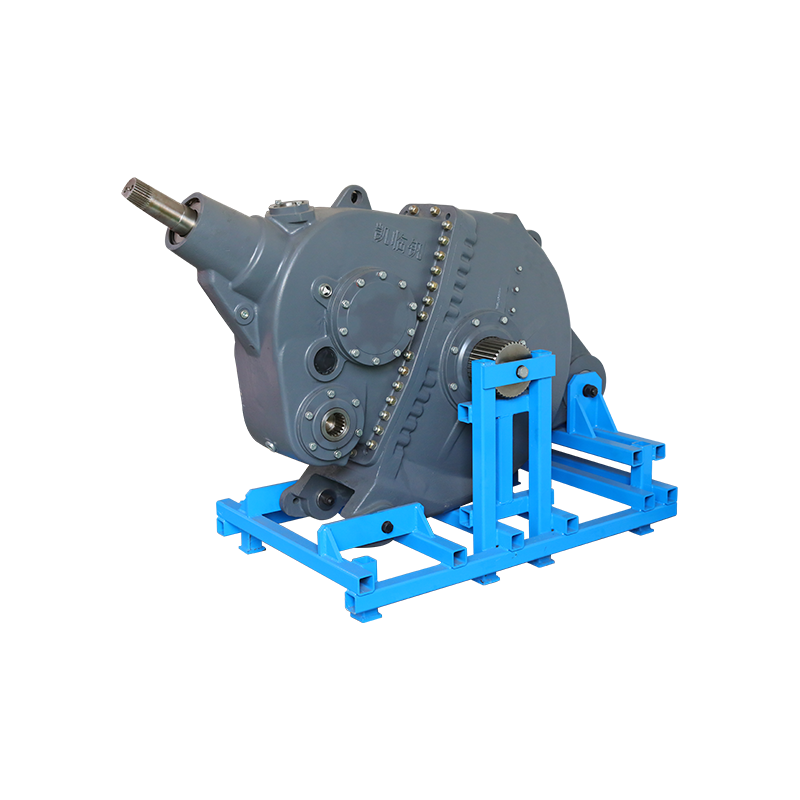

KLF-DFK192 Six rope large Square baler main transmission box

The gearbox is a main transmission box with six ropes and a large square bundle. All transmission mechanisms on the machine are realized through the main transmission box. The internal transmission box uses a 5-stage transmission to realize a series of functions such as picking, bundling, hydraulic power output, and sensor monitoring. This product is the American AGCO (Massey Ferguson) 2270XD large square bale series product, which can directly replace imported machines. At present, this machine is trusted by customers in terms of global sales, stability, and reliability. This product has high operating efficiency and powerful functions. The bundling weight can reach more than 500kg, and the large square bundles are convenient for transportation and save transportation costs.

PREV：No previous product
NEXT：KLF-DFK45 Six rope large square baler picking up transmission box
Get A Quote
  • Specification
  • Contact Us

  • RATIO

    INPUT

    OUTPUT

    X-Y

    X-Z

    X-E

    r.p.m

    Hp

    Kw

    N.m

    r.p.m(Y)

    N.m

    21.27:1

     4.88:1

     1:2.24

     1000

     261

     192

     430

     47

     39009

    Remark: If you have any special requirements feel free to let me know, we also accept custom.
