KLF-GC Mounted disc lawn mower cutterbar

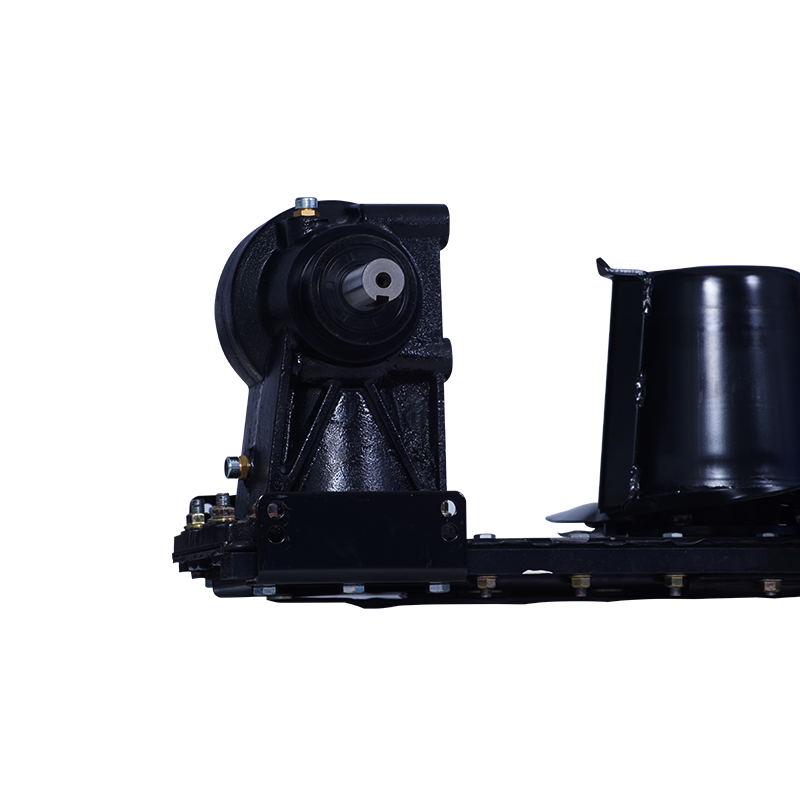

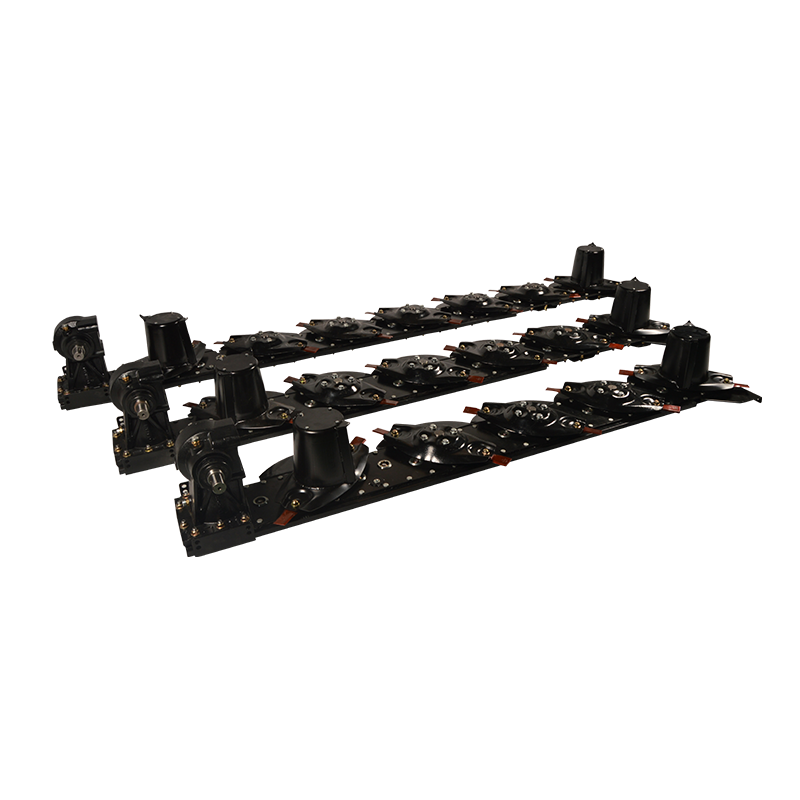

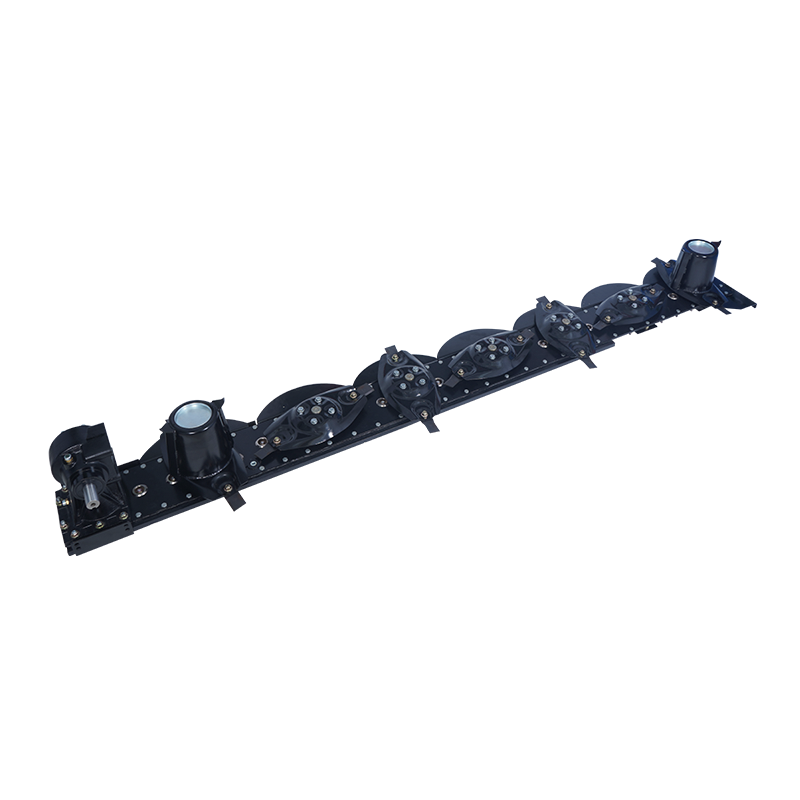

This product is used in the transmission gearbox cutter bar of tractor-mounted rotary disc mowers. It is derived from European and American design concepts and inputs power through the tractor. The transmission main gearbox drives the cylindrical gear to the cutter head. The cutter beam adopts a full gear structure design and the output speed is 3000 rpm. The transmission noise is low, and the quality is more stable and reliable. We have a cutter beam available in five models: 4 discs, 5 discs, 6 discs, 7 discs, and 8 discs. The working width can reach 1.65 meters to 3.2 meters, adapting to different needs. KLF-GC165 is a rear-mounted edge holder that drives the flattening rubber roller. When equipped with GC165, it can realize the lawn mowing and flattening function. It is used for harvesting alfalfa, safflower, and other crops. Flattening the stems will help to absorb water and spread them out for drying.

PREV：KLF-GC165 rear-mounted edge holder disc lawn mower cutterbar gearbox
NEXT：No next product
Get A Quote
  • Specification
  • Contact Us

  • Type

    Parameter

    KLF-GCO4

    KLF-GC05

    KLF-GC06

    KLF-GC07

    KLF-GC08

    kg

    148

    168

    197

    226

    268

    kW/hp

    21/28

    26/35

    31/42

    37/50

    41/56

    L

    1821.8

    2221.4

    2586.3

    2981.4

    3321

    Work breadth

    1650

    2100

    2400

    2800

    3150

    Cutter number

    4

    5

    6

    7

    8

    Number of blades

    8

    10

    12

    14

    16

    Rpm input

    1000

    Rpm output

    2667

    Remark: If you have any special requirements feel free to let me know, we also accept custom.
