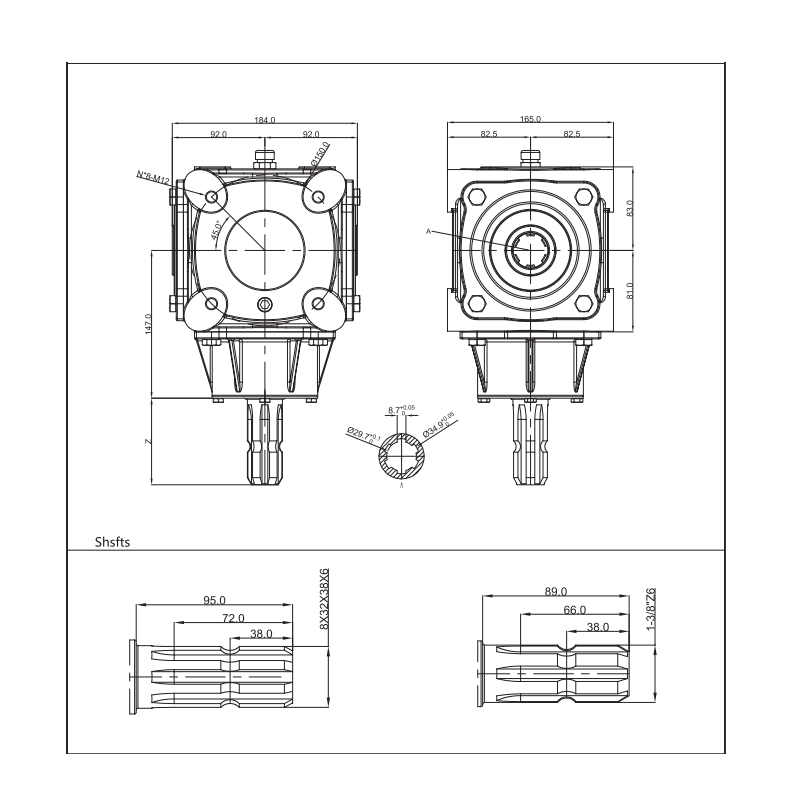

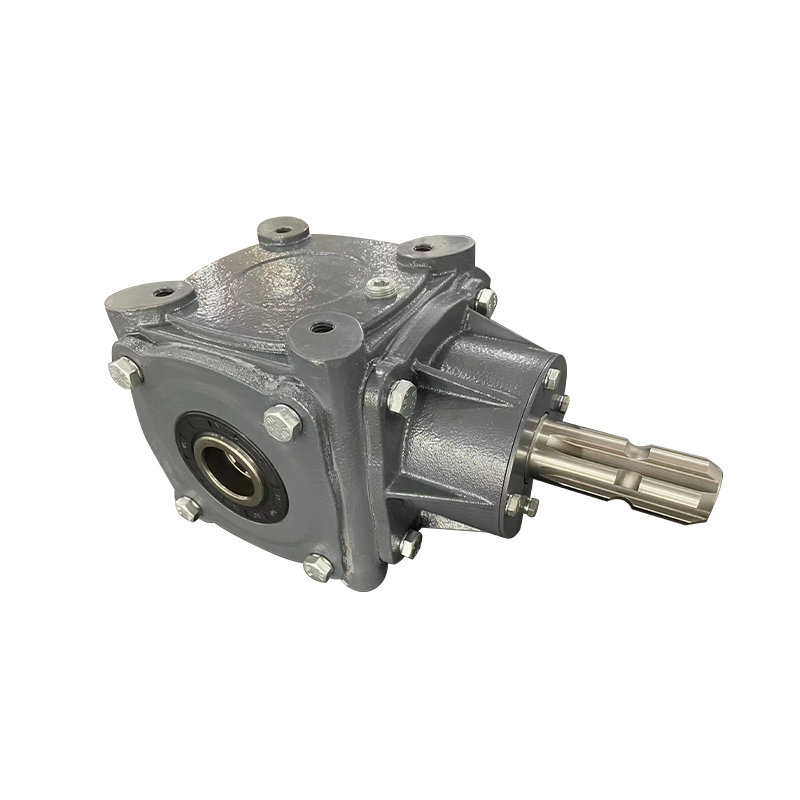

KLF-GC165 rear-mounted edge holder disc lawn mower cutterbar gearbox

This product is used in the transmission gearbox cutter bar of tractor-mounted rotary disc mowers. It is derived from European and American design concepts and inputs power through the tractor. The transmission main gearbox drives the cylindrical gear to the cutter head. The cutter beam adopts a full gear structure design and the output speed is 3000 rpm. The transmission noise is low, and the quality is more stable and reliable. We have a cutter beam available in five models: 4 discs, 5 discs, 6 discs, 7 discs, and 8 discs. The working width can reach 1.65 meters to 3.2 meters, adapting to different needs. KLF-GC165 is a rear-mounted edge holder that drives the flattening rubber roller. When equipped with GC165, it can realize the lawn mowing and flattening function. It is used for harvesting alfalfa, safflower, and other crops. Flattening the stems will help to absorb water and spread them out for drying.

PREV：KLF-GC128 Trailed disc lawn mower cutter bar gearbox
NEXT：KLF-GC Mounted disc lawn mower cutterbar
Get A Quote
  • Specification
  • Contact Us

  • USE

    RATIO

    INPUT

    OUTPUT

    r.p.m

    Hp

    Kw

    N.m

    r.p.m

    N.m

    SPEED MULTIPLIER

    1:2.0

    540

    38

    28

    495

    1080

    248

    1:1.84

    540

    41

    30

    530

    994

    288

    Remark: If you have any special requirements feel free to let me know, we also accept custom.
